Technical Drawing

The Interior speak for themselves
Winsta uPVC

Technical Drawing

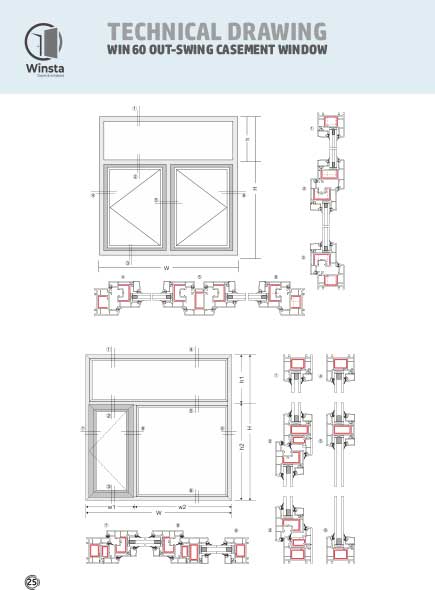

Win 60 out-swing casement window

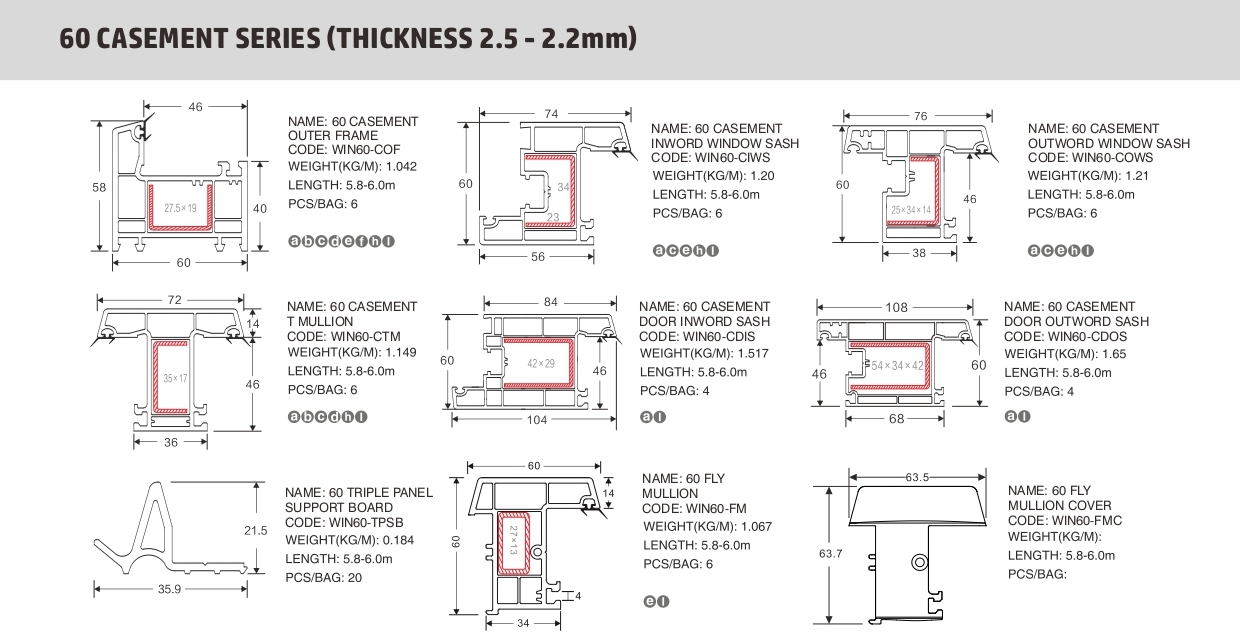

  • 60 Casement Series

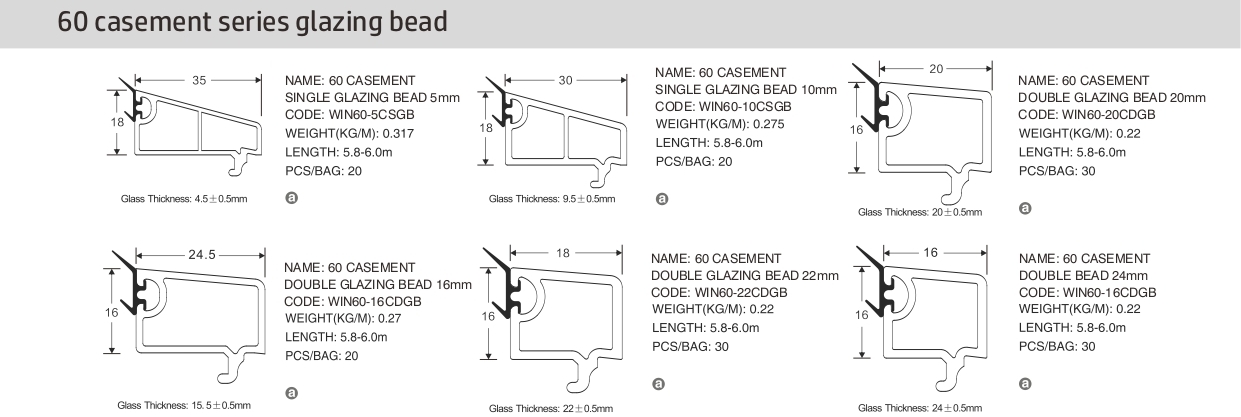

  • Glazing bead
  • Auxiliary profiles

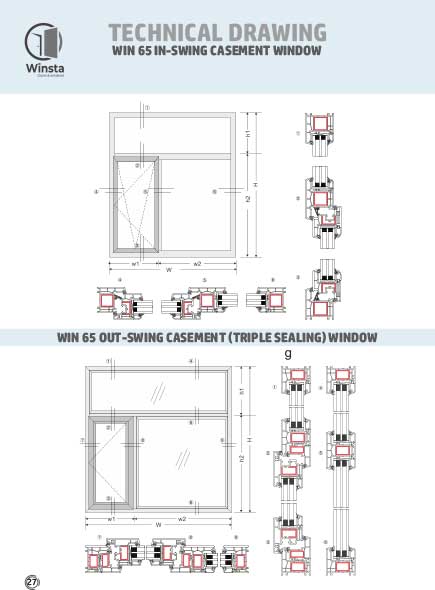

Win 65 in-swing casement window

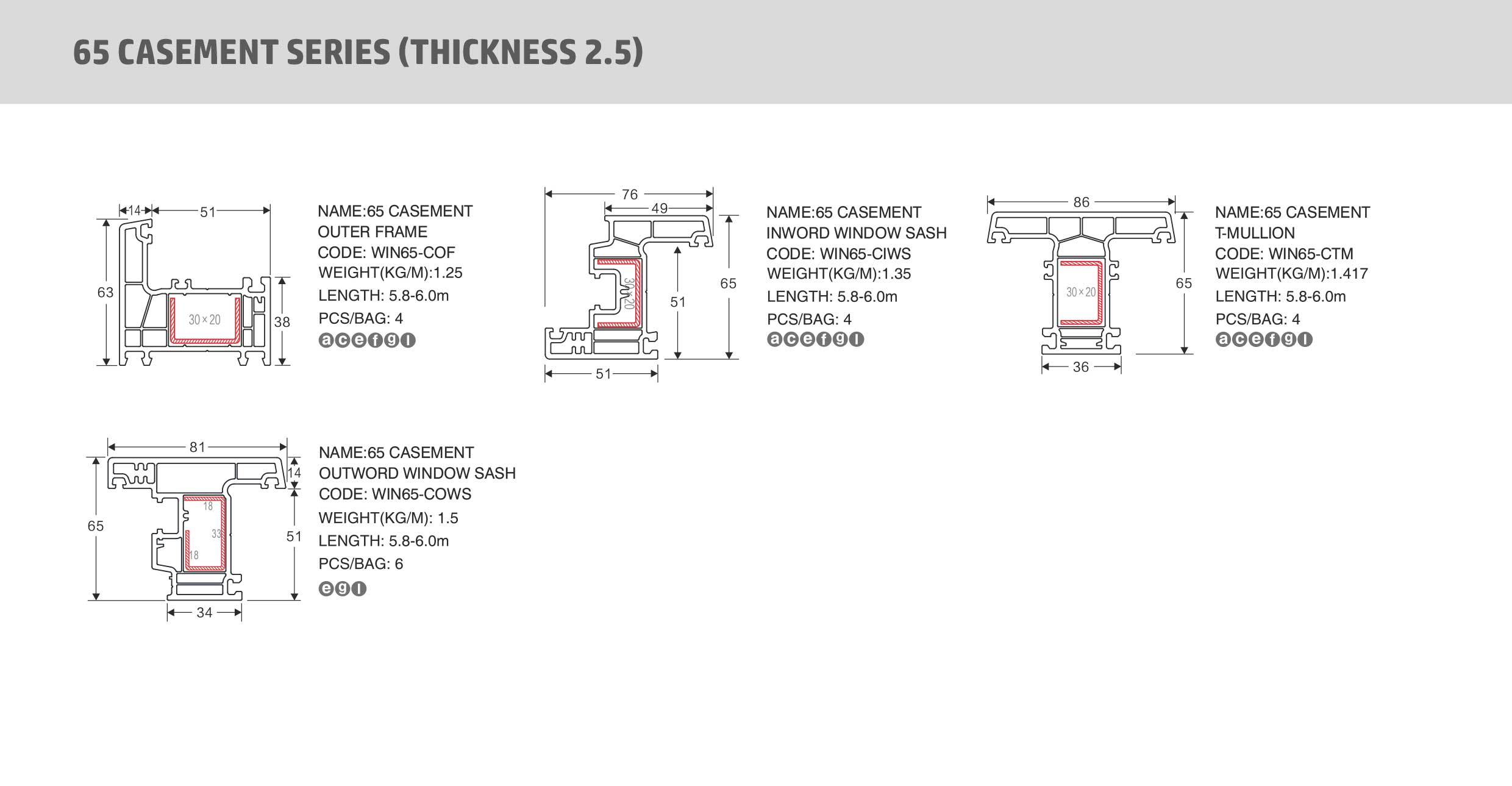

  • 65 Casement Series

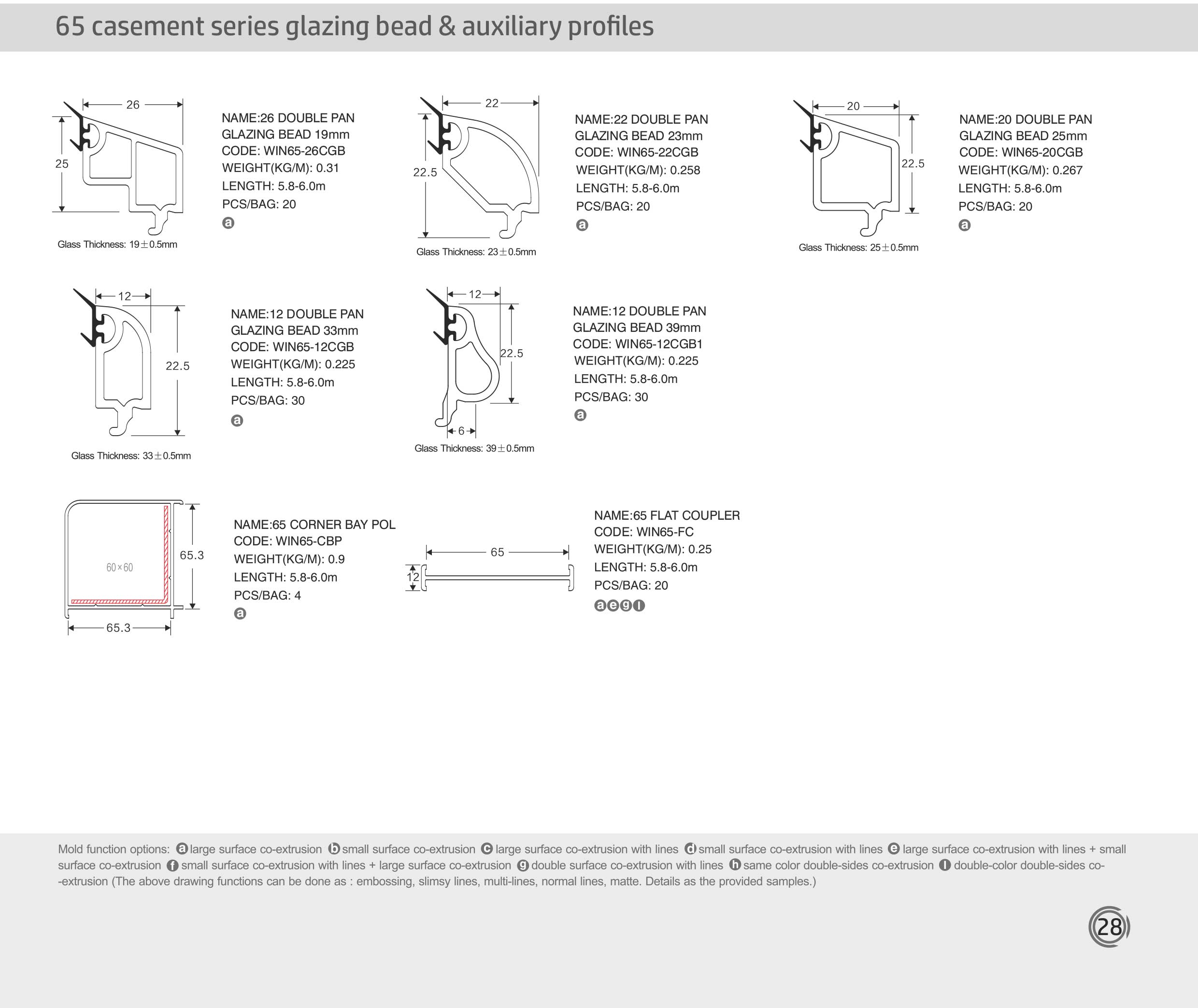

  • Glazing bead & auxiliary profiles

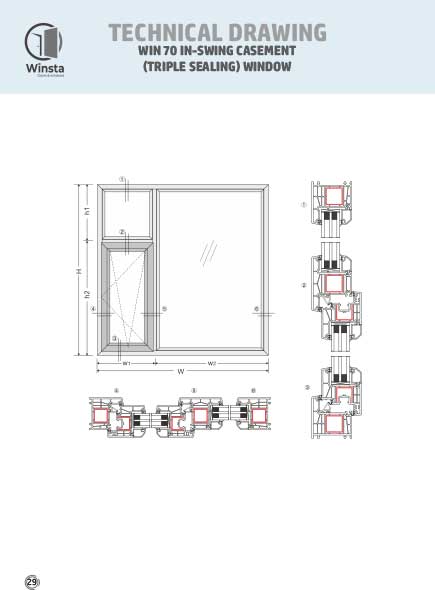

Win 70 in-swing casement

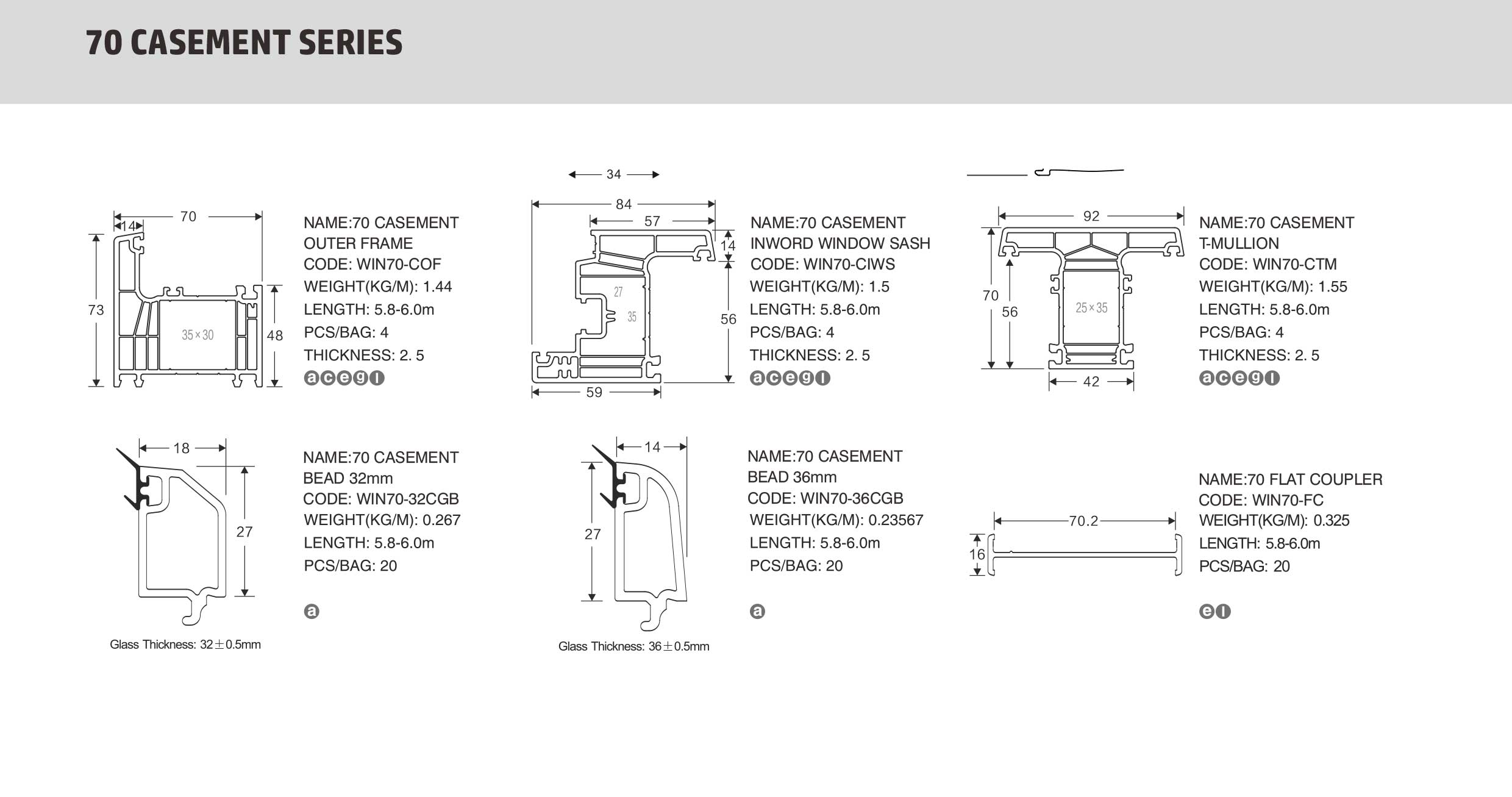

  • 70 Casement Series

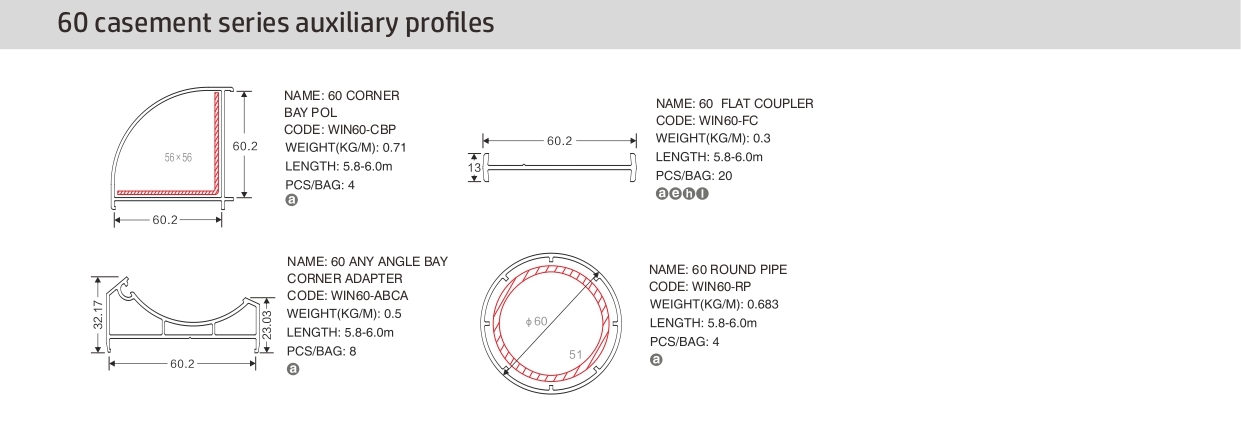

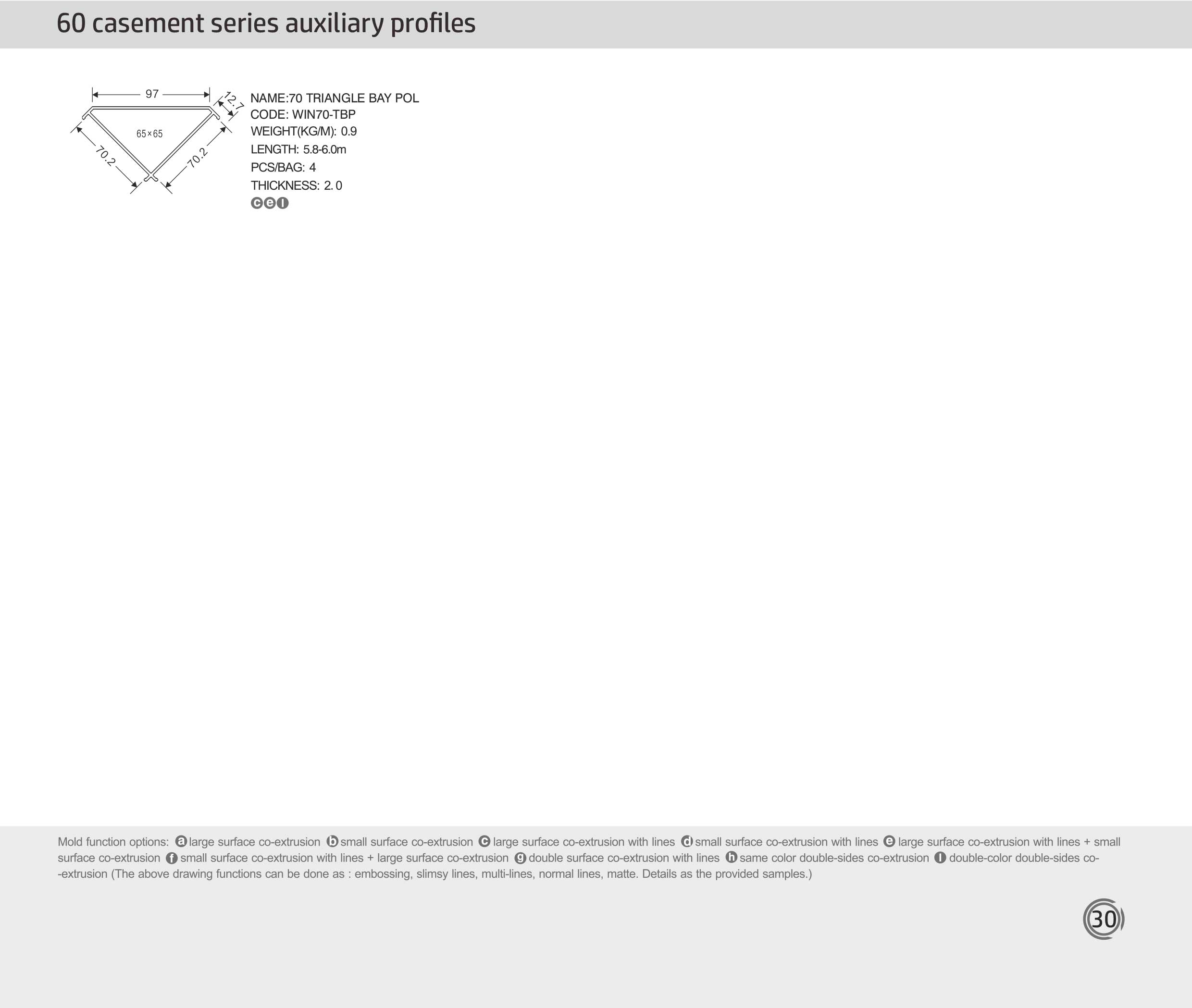

  • 60 casement series auxiliary profiles

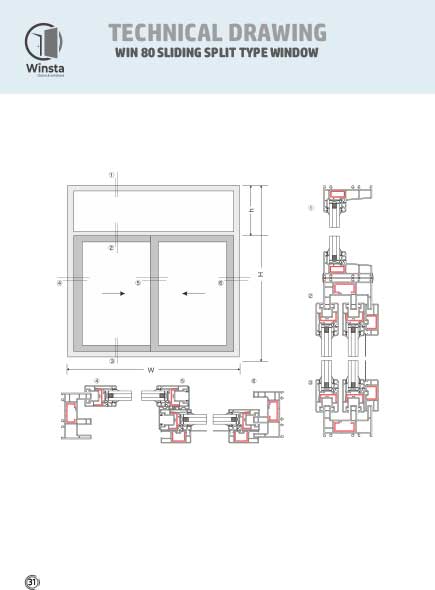

Win 80 sliding split type window

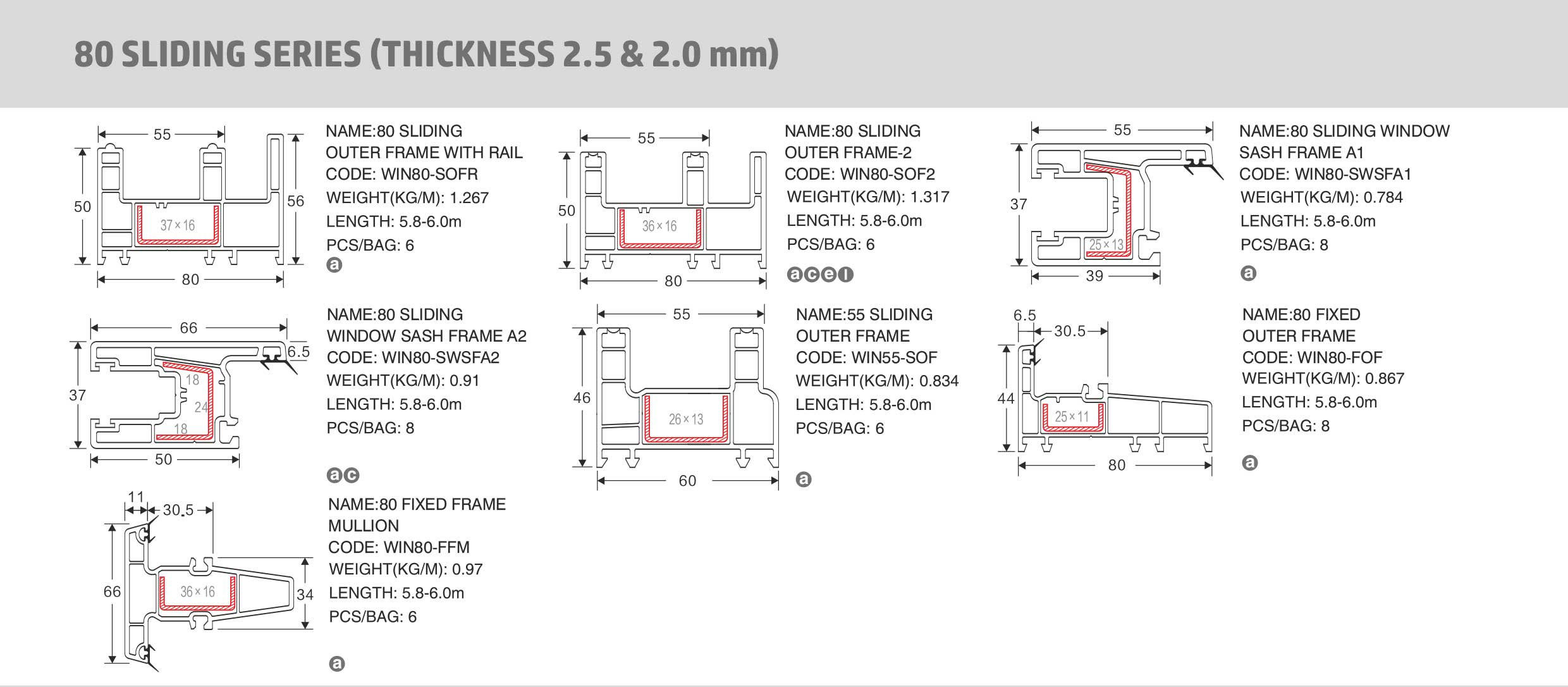

  • 80 Sliding series

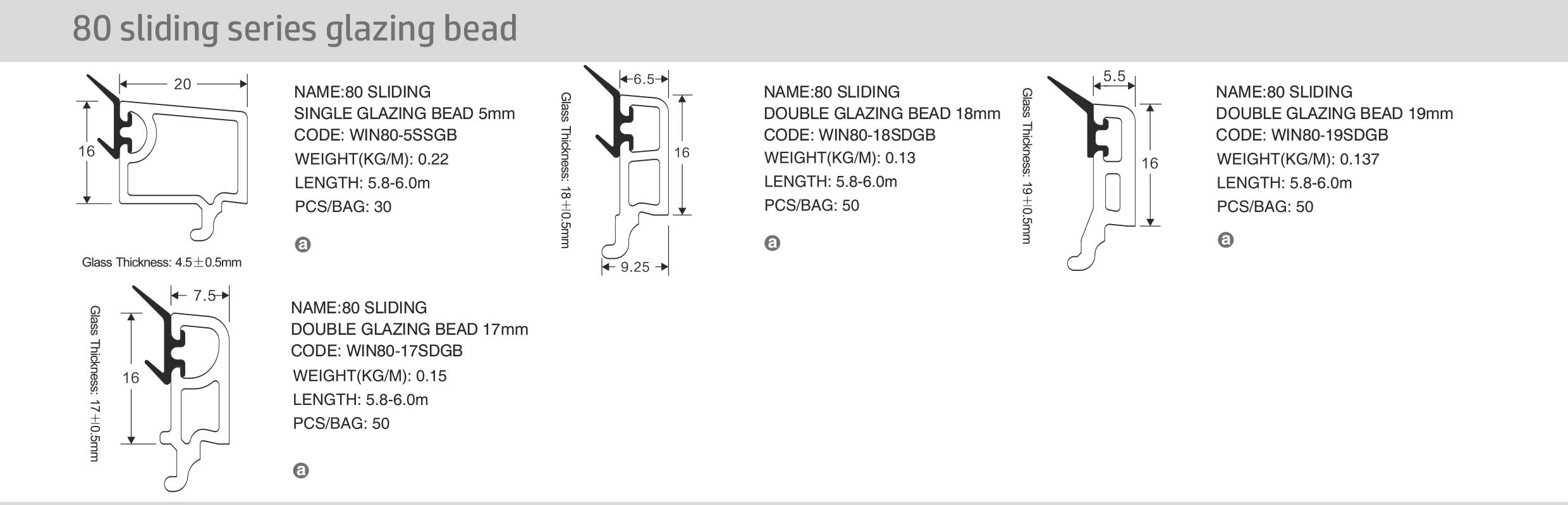

  • Glazing bead

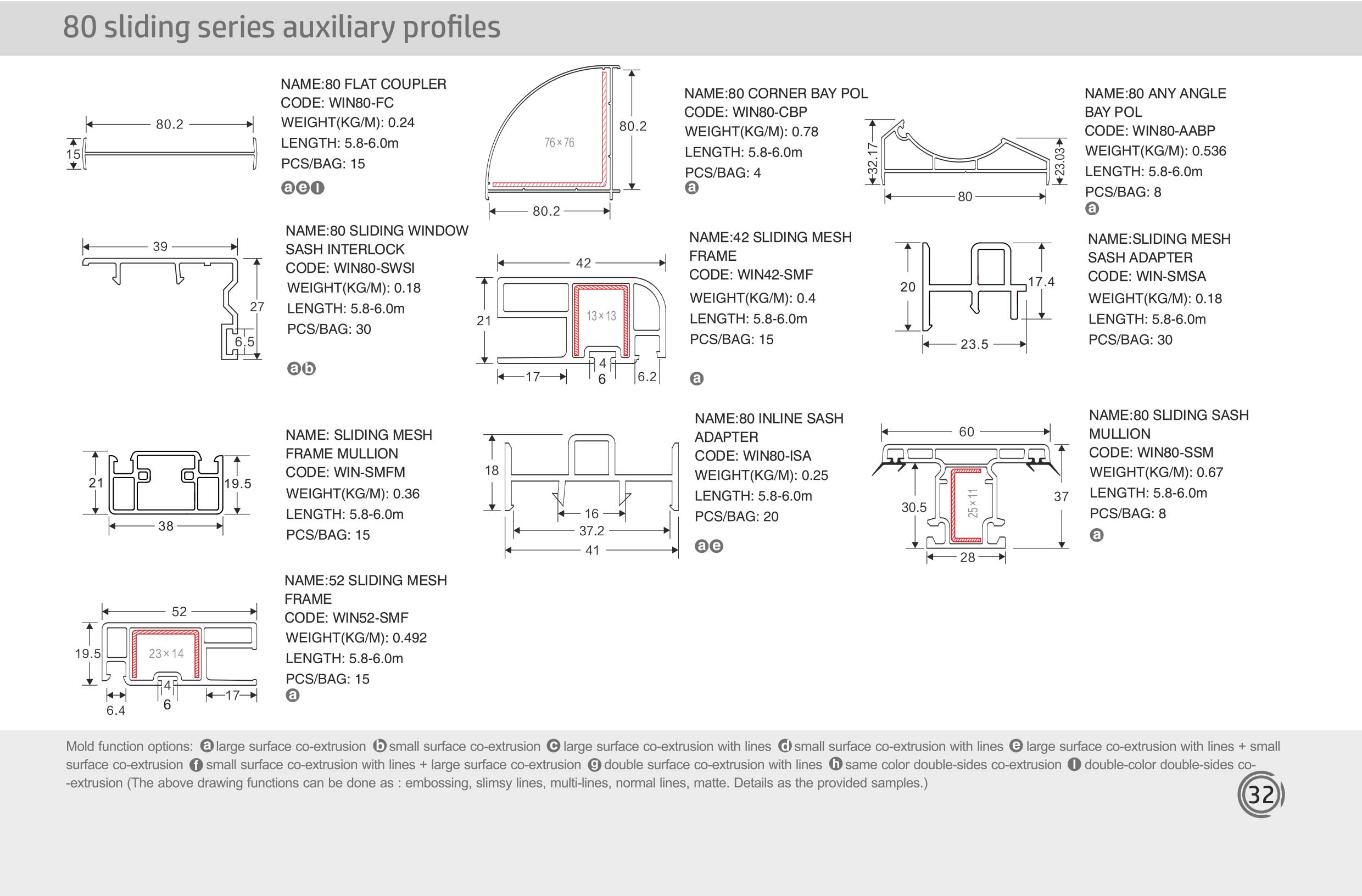

  • Auxiliary profiles

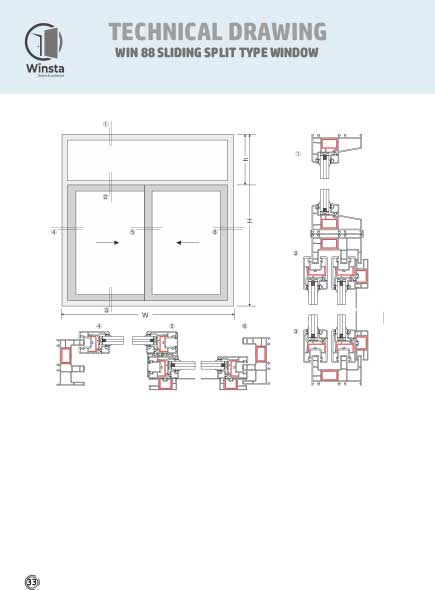

Win 88 sliding split type window

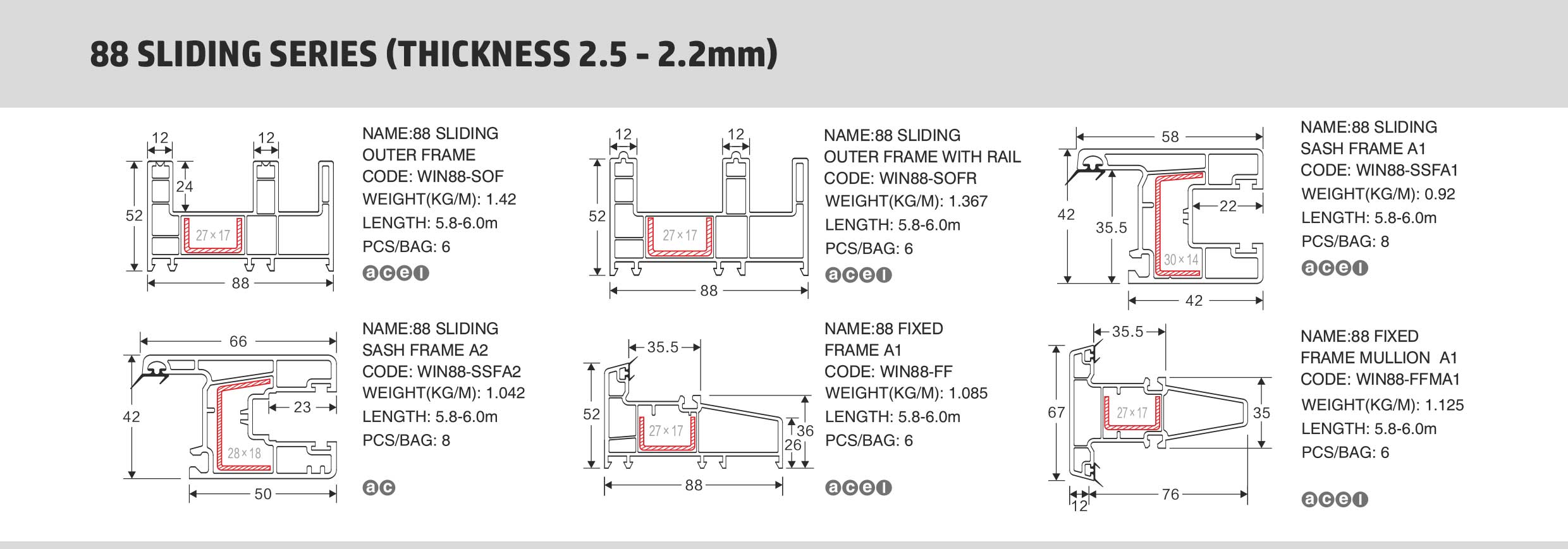

  • 88 Sliding series

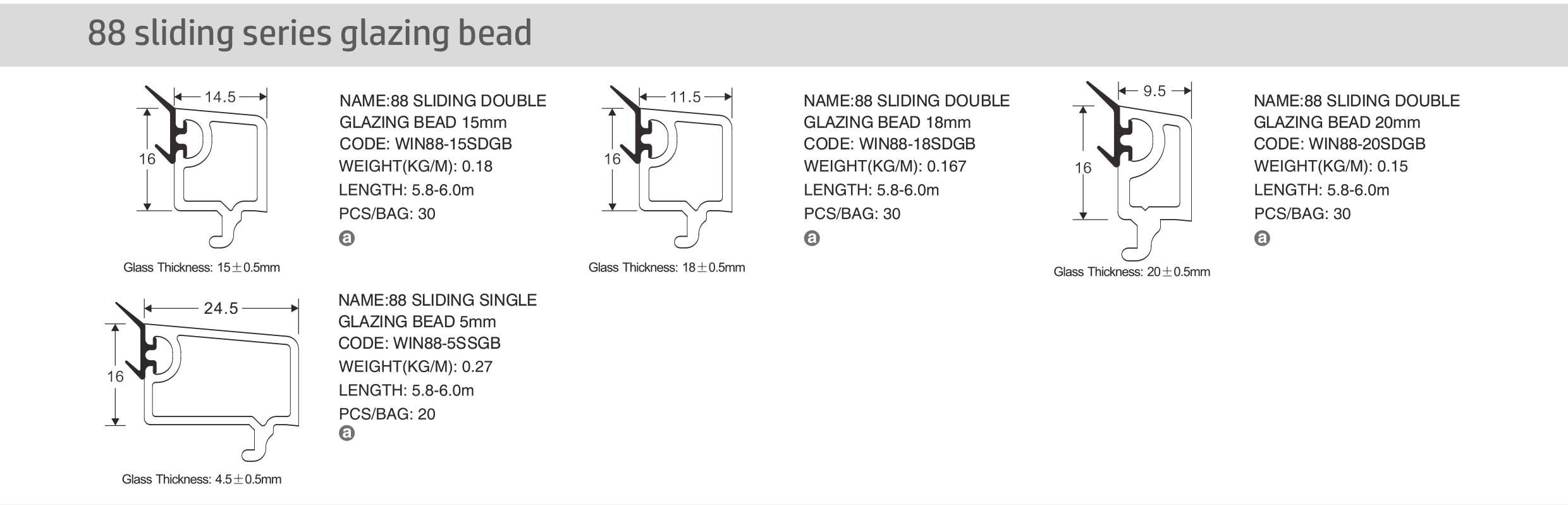

  • Glazing bead

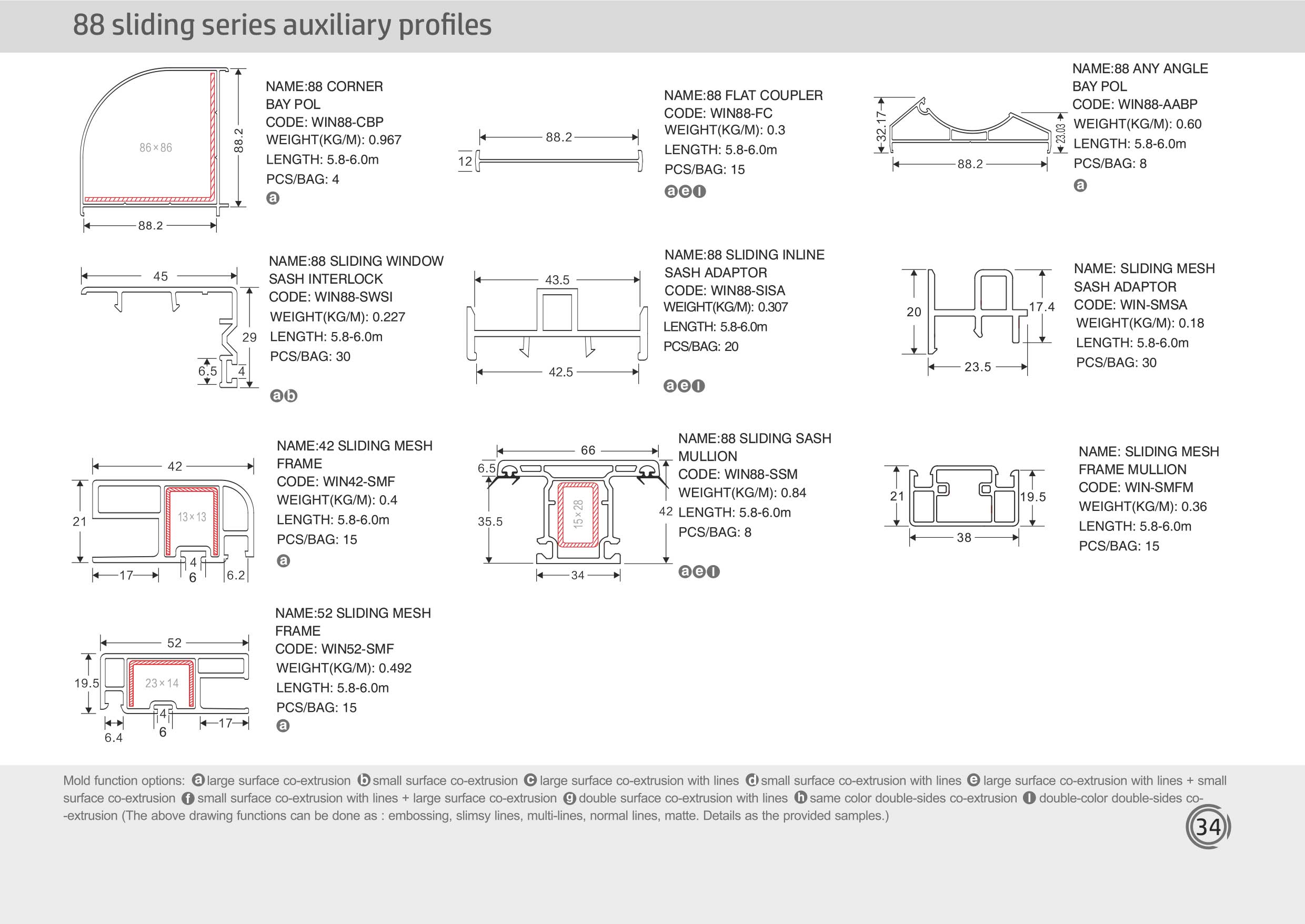

  • Auxiliary profiles

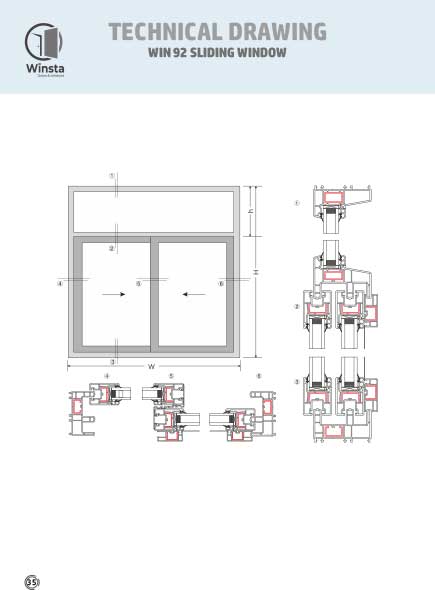

Win 92 sliding window

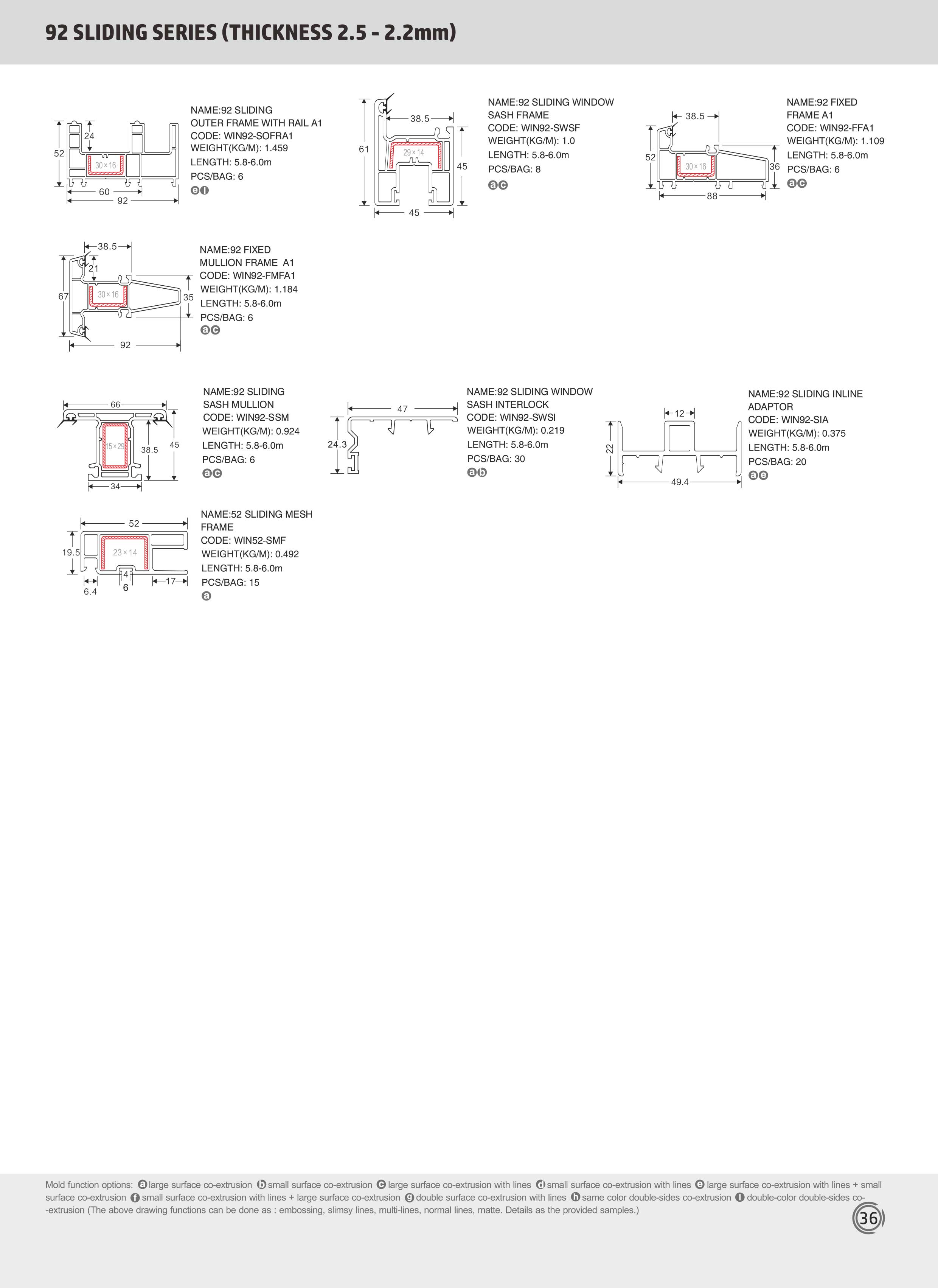

  • 92 Sliding series (THICKNESS 2.5 - 2.2mm)

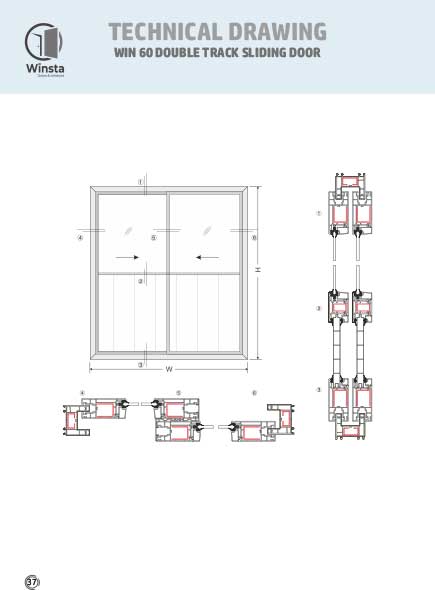

Win 60 double track sliding door

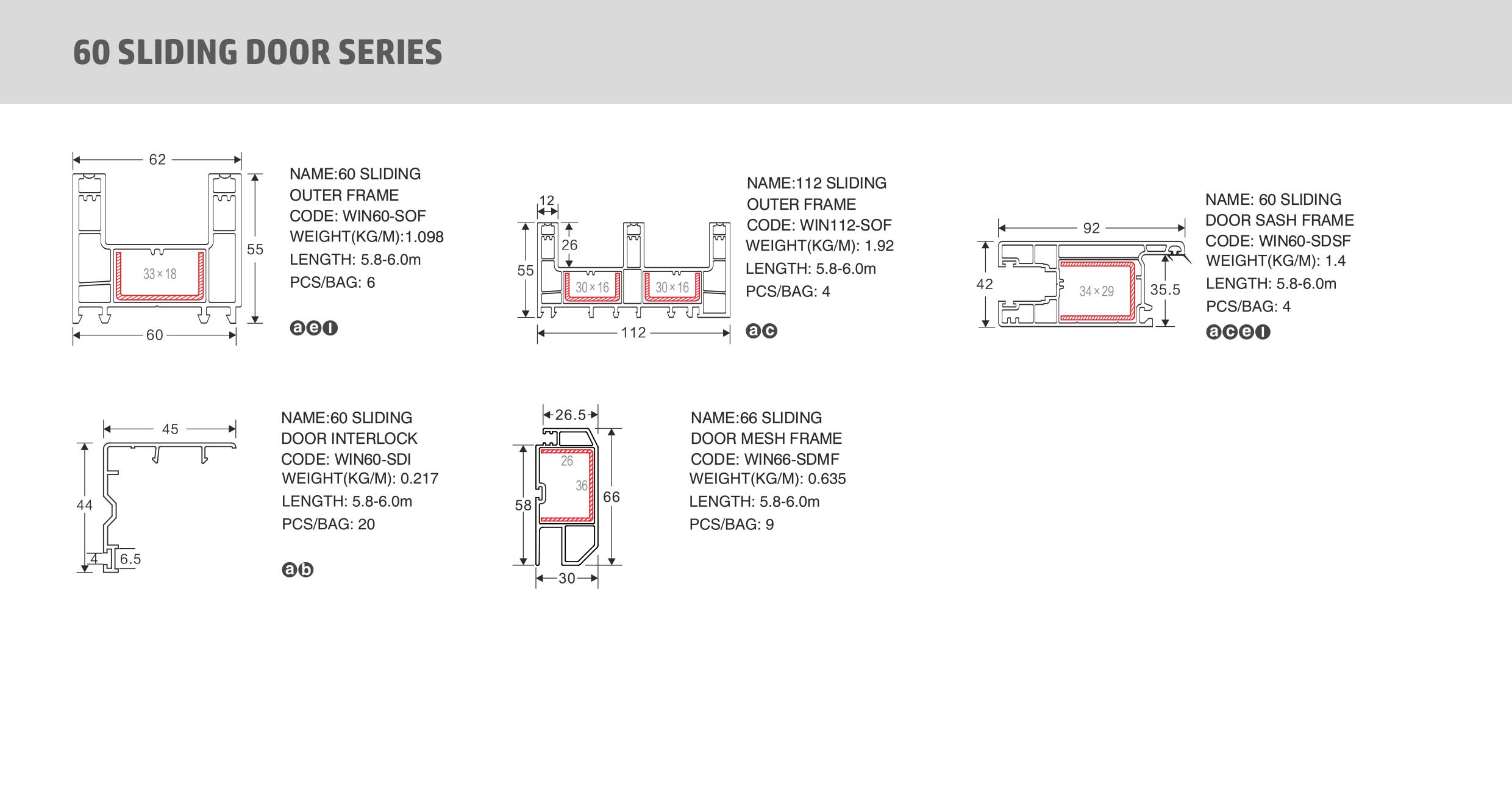

  • 60 sliding door series

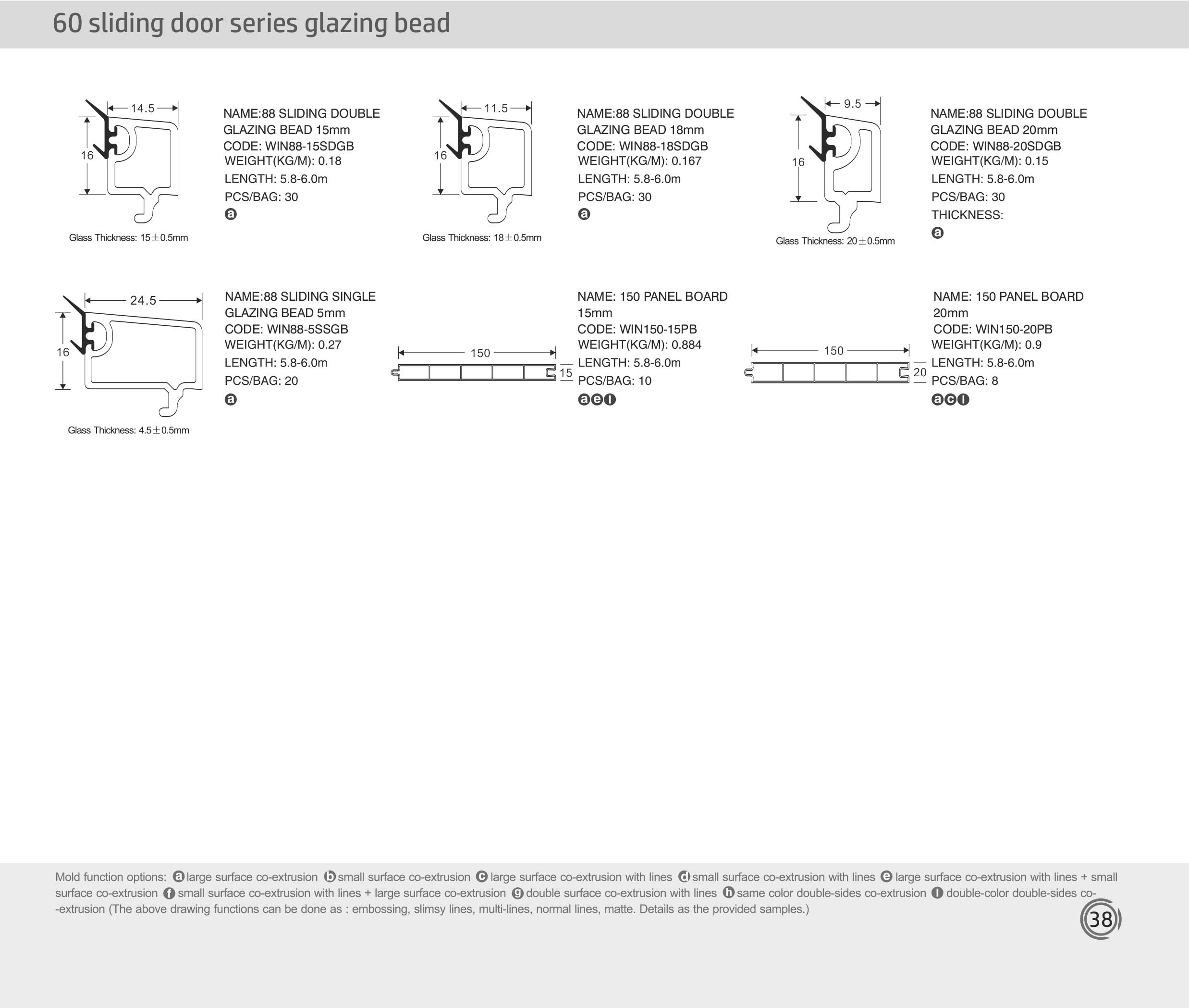

  • 60 sliding door series glazing bead

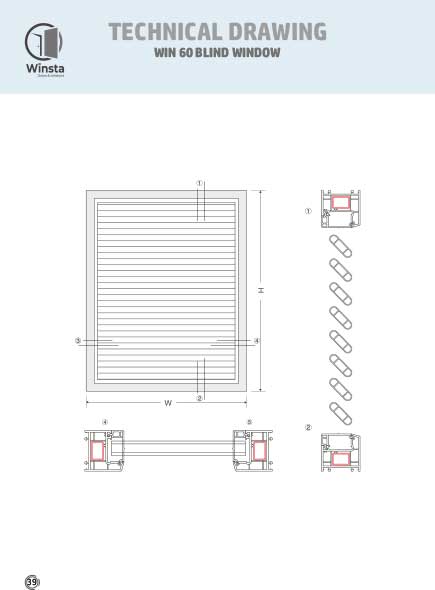

Win 60 blind window

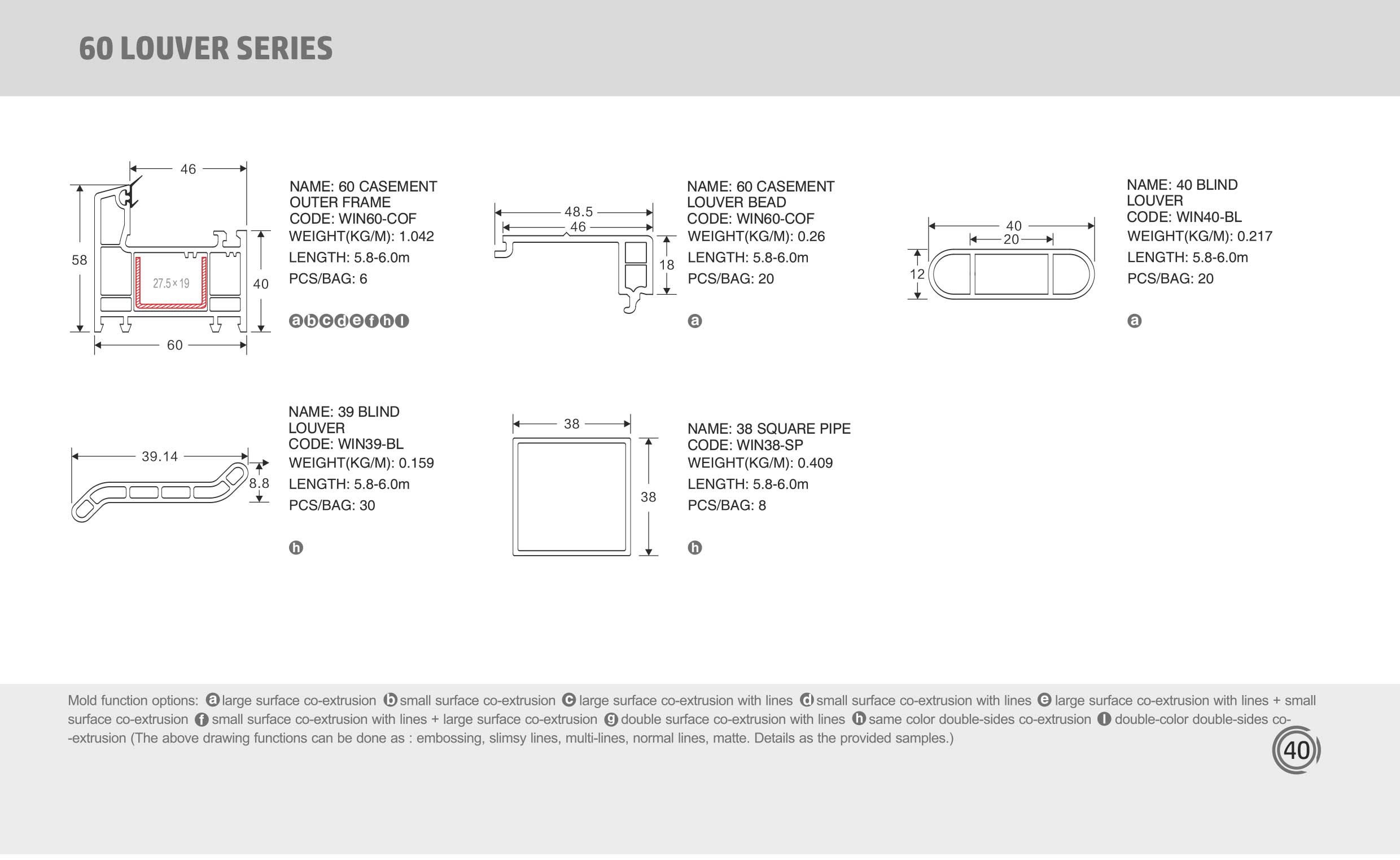

  • 60 Louver series

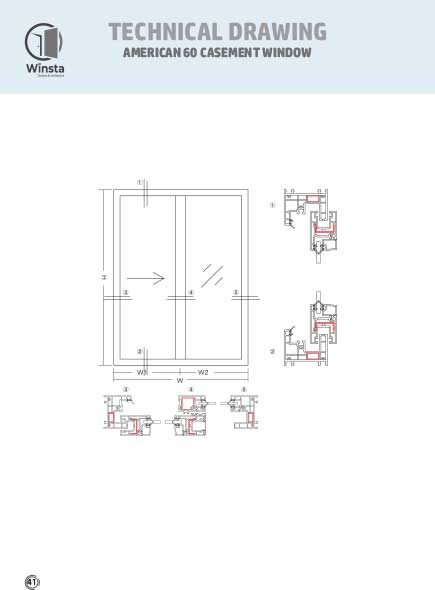

American 60 casement window

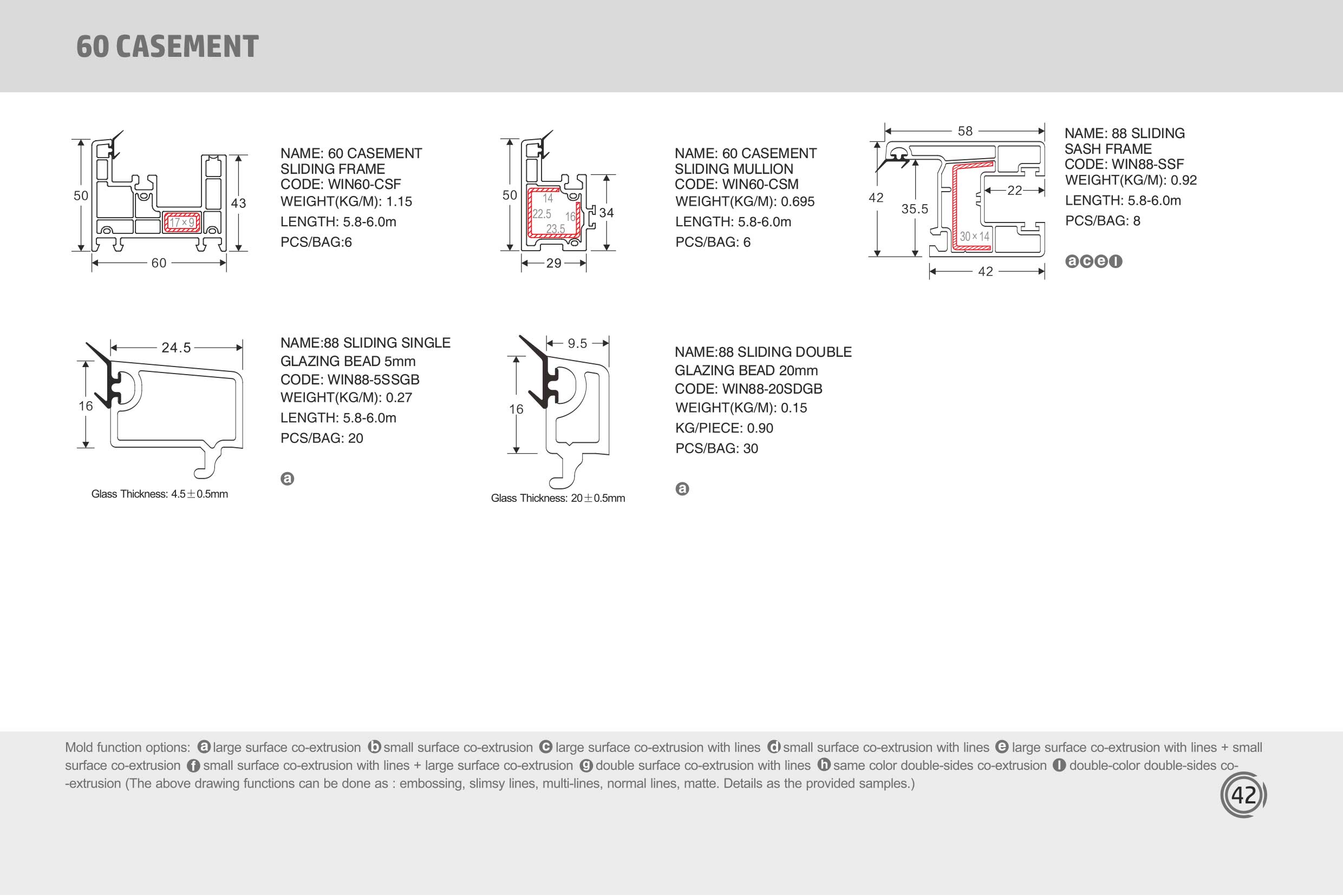

  • 60 casement

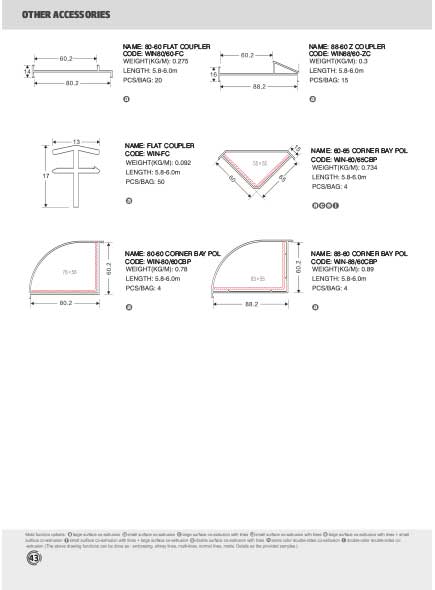

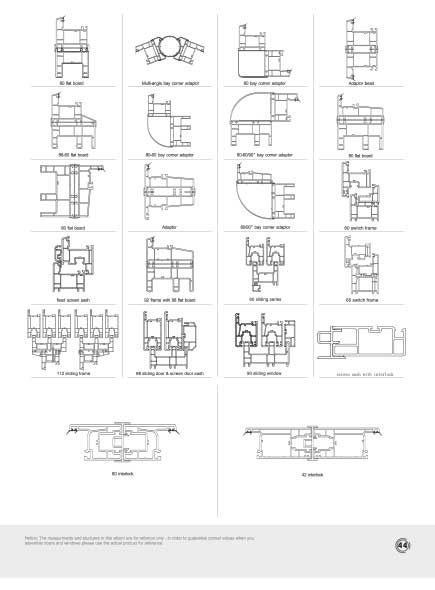

OTHER ACCESSORIES
